12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack

Product Categories
Shandong Tian Han New Energy Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

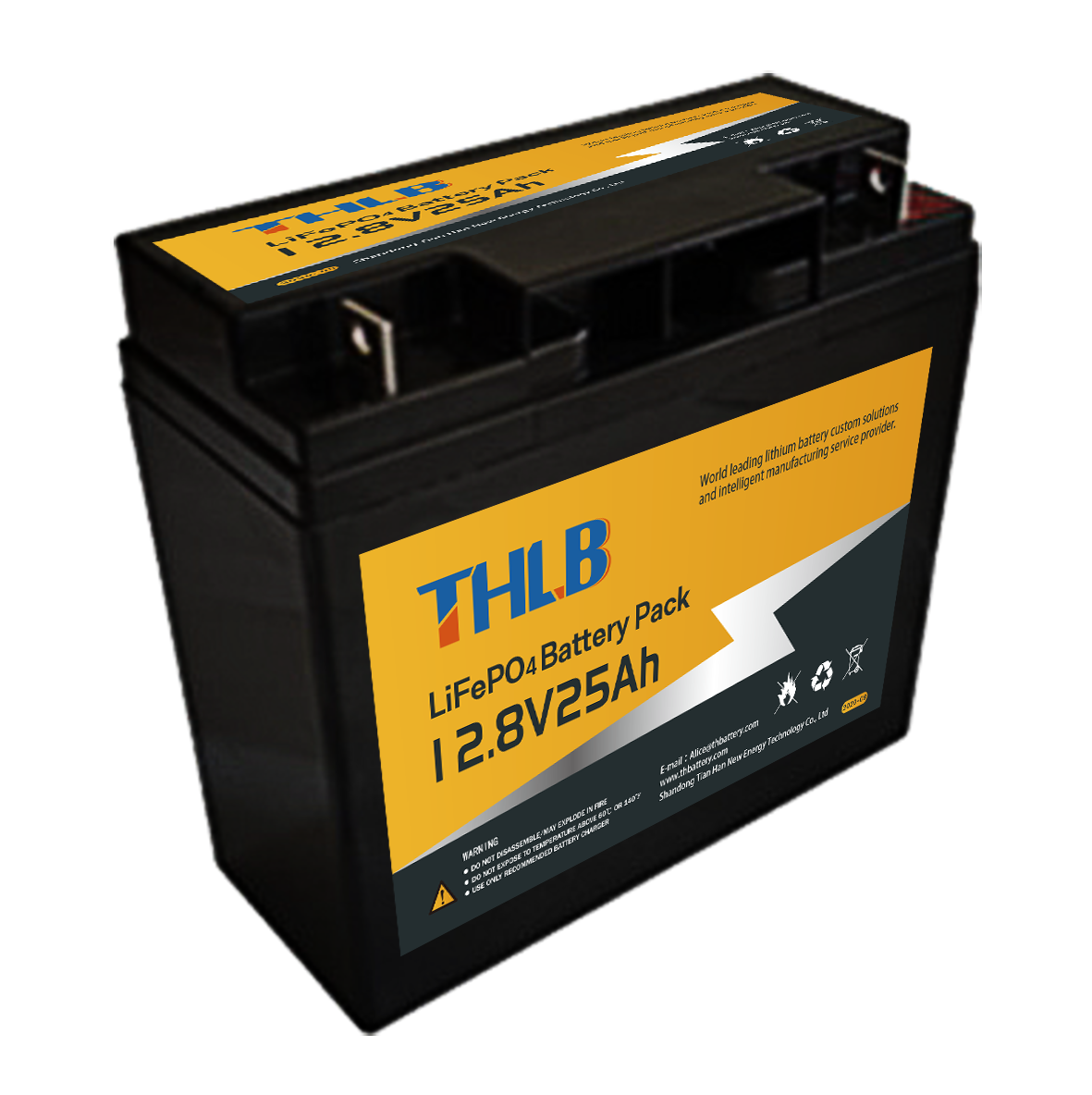

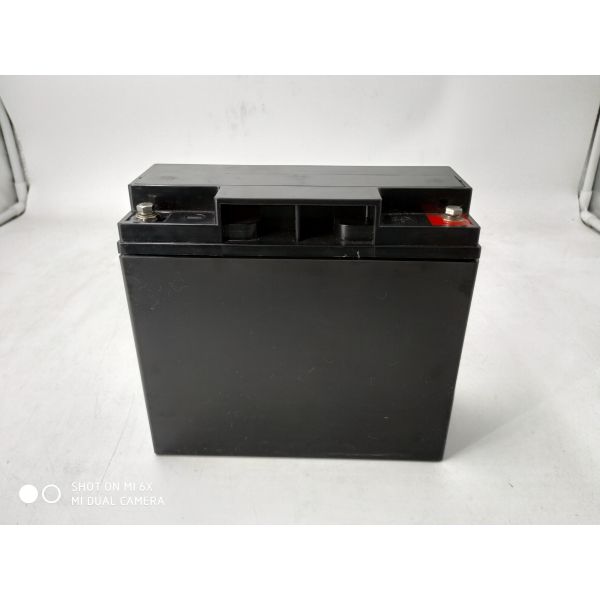

12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack

Brand Name : THLB

Model Number : 12.8v 25ah

Place of Origin : China

MOQ : 10 pieces

Price : $49/pieces 10-49 pieces

Delivery Time : 7-15 Working Days

Packaging Details : Standard Packaging

Cycle Life : 2000 cycles

Application : Boats, Toys, Electric Wheelchairs, Solar Energy Storage Systems, Golf Carts, Electric Power Systems, Electric Bicycles/Scooters

Operating Temperature(℃) : -20-60

Cathode Materials : LiFePO4

Type : Li-ion

Voltage : 12V

Capacity : 25Ah

Category : Rechargeable Batteries pack

Cycle Characteristic : 2000 times

Working Temperature : -20°C~60°C

Battery Weight : 2.5±0.1kg

Reference Battery Size : 182x78x171mm

Contact Now

Customizable Lead Acid Replacement Battery
12 Volt Customizable 25Ah Lithium Ion Rechargeable Battery Pack Replacement Alternative for Lead Acid Boats Energy Backup
12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack 12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack 12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack
Factory customized rechargeable battery lithium ion pack 12volt lithium battery for electric bike
Product Specifications
Product Model GC-12V-25LFP-B
Electrical Characteristics
Normal Voltage 12.8V
Rated Capacity 25±1Ah(0.2C)
Energy About 320Wh
Internal Resistance ≤40mΩ
Cycle Life ≥2,500times 0.2C(80%DOD)
Passive Protection Function Over charge protection, Over discharge protection, Temperature protection, Balanced function
Standard Charge
Charge Voltage 14.4±0.15V
Charge Mode 0.2C to 14.4V, then 14.4V,charge current to 0.01C (CC/CV)
Charge Current 4A
Max. Charge Current 10A
Standard Discharge
Continuous Current 20A
Max Continuous Current ≤25A
Max. Pulse Current ≤66A(≤1s)
Discharge Cut-off Voltage About 10.0V
Environmental
Charge Temperature 0℃ to 45℃
Discharge Temperature -20℃ to 60℃
Storage Temperature 0℃ to 40℃
Mechanical
Material System LiFePO4
Material of Case Plastic
Dimensions (mm) 182*78*171mm
Weight 2.5±0.1kg
Terminal Torberry connector
Performance Curves
Charge and Discharge Curve
12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack
Cycle Performance
12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack 12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack 12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack 12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack
Company Information
12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack 12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack 12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack 12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack
Packing & Delivery
12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack
Frequently Asked Questions
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ=100pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 3-5 Years Warranty

Product Tags:

12V 25Ah lead acid replacement battery



lithium ion rechargeable battery pack



boat energy backup battery


Quality 12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack for sale

12 Volt 25Ah Lead Acid Replacement Battery Customizable Lithium Ion Rechargeable Pack Images
